First select the type of movement you want to measure. Here you can choose between a linear or rotational movement.
The position detection can be incremental or absolute. The incremental measuring method provides a relative position as well as direction of movement, which requires an assignment to a reference point (starting point) at the beginning of the measurement. This is done by homing the axis. The absolute measuring method provides concrete position information at any axis position. A reference run at the beginning of the measurement is not necessary.
Discover our series
High traversing speeds of up to 10 m/s, various serial interfaces, resolution as fine as 78 nm, and many other features

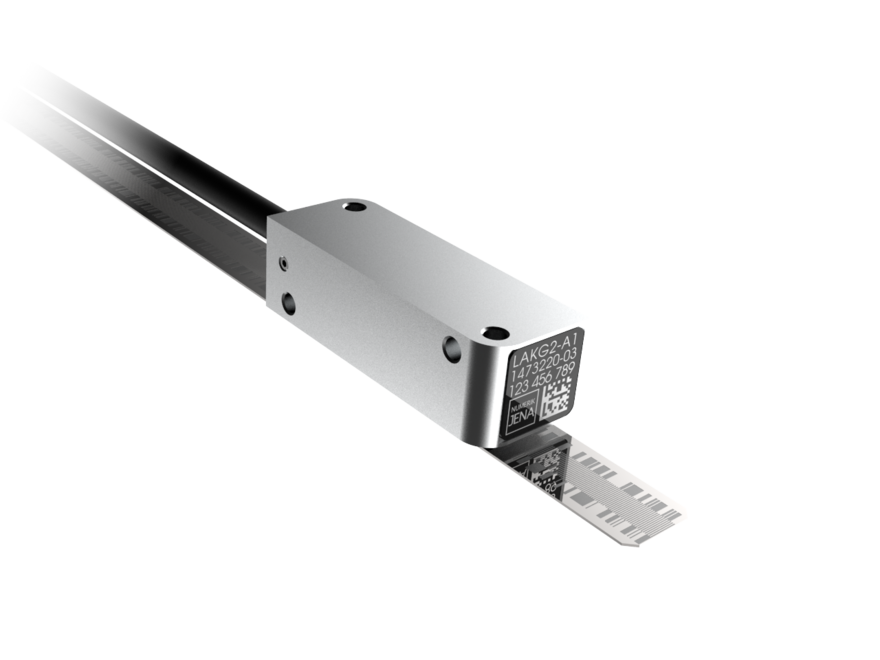

The LAK Series catapults absolute measuring into a new dimension. The fusion of incremental and absolute technology in combination with the EPIFLEX sensor module provide this encoder its outstanding features.
High signal quality as well as fast travel speeds due to a novel sensor design with combined absolute and incremental sensing
Reduced cost of production and lower encoder prices thanks to standardized components
High control dynamics due to short calculation times
