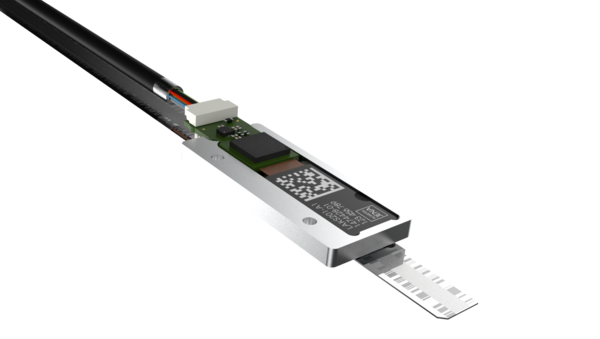

LAK Series

Absolute optical path encoder

High traversing speeds of up to 10 m/s, various serial interfaces,
resolution as fine as 78 nm, and many other features

LAK

Precise positioning
High signal quality as well as fast travel speeds due to a novel sensor design with combined absolute and incremental sensing
Save money
Reduced cost of production and lower encoder prices thanks to standardized components
High control dynamics
High control dynamics due to short calculation times

The LAK Series catapults absolute measuring into a new dimension. The fusion of incremental and absolute technology in combination with the EPIFLEX sensor module provide this encoder its outstanding features.

  • Linear absolute encoder with ultra small dimensions
  • High resolution up to 78 nm (w/o additional electronics)
  • High traversing speed up to 10 m/s
  • Very low weight of the scanning head
  • Automatic signal adjustment after mounting possible with a high number of analysis options via ABSOFLEX software
  • Two absolute tracks and two incremental sensors ensure high contamination immunity
  • Special Kit version available

Show details

Kit LA

Save space
Considerable space savings for integration thanks to a highly compact and low-profile design
Make your ideas come true
High number of variants due to modular design and individually adaptable components
Precise positioning
speeds due to a novel sensor design with combined absolute and incremental sensing

The Kit LA Series catapults absolute measuring into a new dimension. This encoder was especially designed for applications with especially customized requirements. These systems are not only extremely small, they are also particularly configurable. Your ideas won't be hardly limited with this series.

  • Special Kit-version of the LAK encoder
  • Customized housings and sensor frames available
  • High resolution up to 78 nm (w/o additional electronics)
  • High traversing speed up to 10 m/s
  • Two absolute tracks and two incremental sensors ensure high contamination immunity
  • Automatic signal adjustment after mounting possible with a high number of analysis options via ABSOFLEX software

Show details
